Map-making has often adapted technologies designed for purposes other than making maps.
I recall Scitex hardware as the state-of-the-art in large format color computer mapping in the early 1980s when I was first learning cartography. Cartography applications were developed when Scitex, its origins in designing and printing textiles, noticed “the similarity between printing large fabric surfaces and coloring topographic surfaces.” (PDF source).
Step back a few generations and we find the then ubiquitous typewriter adapted to making maps by DIY cartographers.

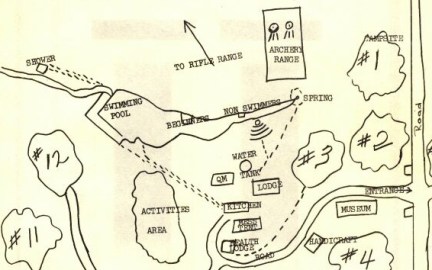

It is not difficult to find old DIY maps that used a typewriter to create type, like this 1950s map (below) of Camp Tonkawa in east Texas (source). This is a sketch map that was run through a typewriter for typographic annotations:

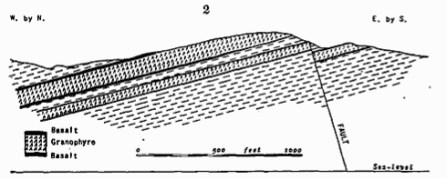

A more sophisticated DIY approach to typing maps was detailed by R. A. Daly in the March 1905 issue of the American Journal of Science. Daly describes a typewriter with special characters – examples shown in the graphic which heads this posting – for creating area patterns on maps:
It is safe to say that the majority of persons are seriously hampered in the preparation of text illustrations by the difficulty and expense entailed in the tedious drawing of map, section or diagram. Yet the desirability of greatly increasing the proportion of such illustrations in the thousands of scientific articles published each year is manifest. That clearness, precision and conciseness in the exposition of a theme are generally enhanced by the use of abundant, appropriate diagrams and maps is as evident as that the blackboard is the constant friend of the teacher.
Ideally, the author should himself be able to make the original drawing quickly, neatly and artistically. The usual execution of drawing with the pen is, to the average author, discouragingly slow and expensive, not always neat, and still less often artistic. The following note relates to some experiments made to increase rapidity and neatness in the production of line drawings by the use of a machine. Enough success has been attained to warrant the recommendation of the machine method to geologists, geographers, and others.
Recently the Hammond Typewriter Company of New York has constructed, for the Geological Survey Department of Canada, a typewriter provided with a carbon ribbon and with ninety special characters designed for the preparation of line drawings to accompany geological and geographical papers.
It is to be understood, of course, in the preparation of a diagram that an outline drawing is first prepared, and that the spaces thus formed are filled with the symbols shown in the legends, by means of the machine.

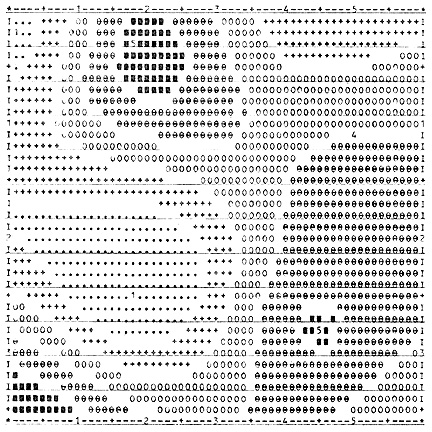

The earliest printed computer maps, such as the map below created with SYMAP software in the mid-1960s, used a line printer. Line printers were, more or less, a typewriter adapted to printing from a computer.

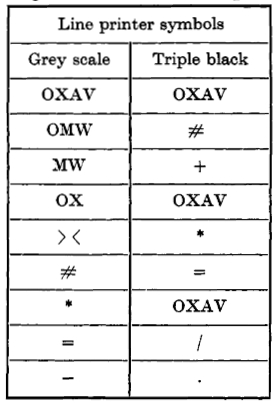

Computer output, on monitors and printers, was limited to typical typewriter characters – letters, numbers, and symbols such as + or = or %. These limited symbols could be used to create area patterns on maps. A modification of the line printer hardware allowed the overprinting of characters, the darkest being overprinted OXAV ranging down to a “-” for the lightest area pattern. The table below provides the overprint line printer symbols for a nine step range of grey tones:
The output was actually less sophisticated than the output from the 1905 map typewriter given the limited symbology of the line printer:
A recent book by Nick Chrisman called Charting the Unknown (ESRI Press, 2006) documents the early history of computer mapping and GIS at Harvard University’s Laboratory for Computer Graphics and Spatial Analysis, including the SYMAP software which produced the above map.
• • •
Source of above quotes: “Machine-Made Line Drawings for the Illustration of Scientific Papers” by R. A. Daly. American Journal of Science, March 1905.
Source of Line Printer Symbols table: R. Mould and C. Wyld, “A comparison between line printer and conventional Polaroid gamma camera displays using a liver phantom. Off-line computer and contour mapping package.” Physics in Medicine and Biology, 18:1, January 1973, p. 88-99.
